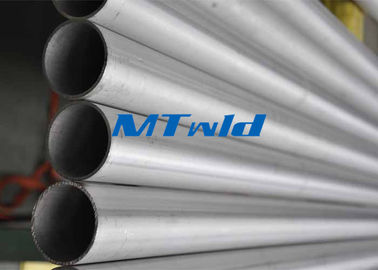

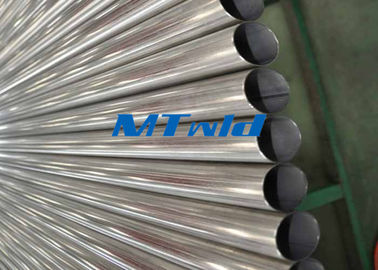

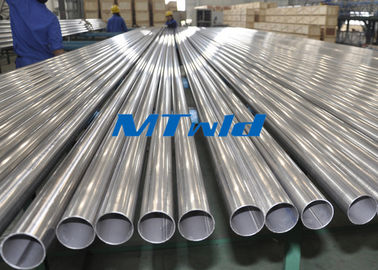

ASTM A789 / ASME SA789 SAF2507 / 2205 Spawana rura ze stali nierdzewnej
Szczegóły Produktu:
|
|
Place of Origin: | CHINA |
---|---|
Nazwa handlowa: | MTSCO |
Orzecznictwo: | ISO 9001 & PED & AD2000 |
Model Number: | MTSCOSSWT18 |
Zapłata:
|
|
Minimum Order Quantity: | 1000 Kgs |
Cena: | 2500-12000USD/TON |
Packaging Details: | Plywood Case / Bundles |
Delivery Time: | 25 Days |
Payment Terms: | T / T ; L / C |
Supply Ability: | 500 Tons / Month |
Szczegóły informacji |
|||
materiał: | TP304 TP304L TP316 TP316L, seria 300 Stal nierdzewna | powierzchni: | 320 # Lub 400 # Outside Polished |
---|---|---|---|
Stan dostawy: | Miękki / twardy | typu: | Spawane |
Metoda przetwarzania: | ERW, EFW Etc | Test PMI: | 100% |
High Light: | welded stainless steel tubing,welding round tube |
opis produktu
ASTM A269 / ASME SA269 ERW Stainless Steel Welded Tube In Oil And Gas Industry
1 . OD ( Outer Diameter ) : 5.80mm to 2032mm ( 0.23 inch to 80 inch )
2 . WT ( Wall Thickness ) : 0.25mm to 28mm ( 0.01 inch to 1.125 inch )
3 . Length : According to customer's requirement
4 . Standards : ASTM A312; ASTM A269; ASTM A789; ASTM A790 ect
5 . Process Method : ERW, EFW etc
Chemical Composition :
Material | ASTM A269 Chemical Composition % Max | ||||||||||
C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^. | ^ |
TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
TP316L | 0.035 D | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ |
Application :
a) For fluid and gas transport
b) Structure and machining
c) Heat exchanger pipes etc
Advantages :
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
