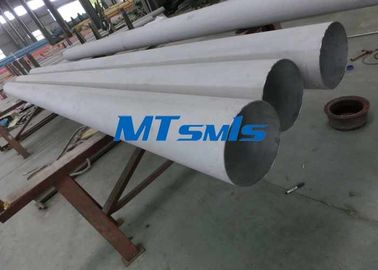

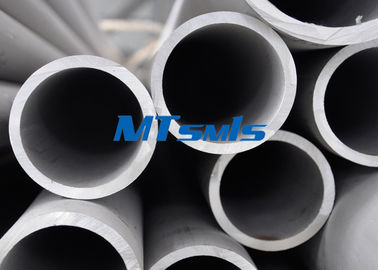

Cold Rolled Stainless Steel Seamless Pipe In Big Diameter , TP347 / 347H , 10.3mm To 1219mm
Specifications:
1. Standards:ASTM / ASME, GB, DIN, JIS, T14975, etc.
2. Out Diameter: 10.3mm-1219mm
Wall Thickness:1.24mm-59.54mm
We are professional manufacturer of stainless steel pipe, seamless stainless steel pipe.
01) Commodity name: seamless stainless steel pipe
02) Process method: cold rolled/cold drawn
03) Surface finish: annealed/pickling(AP), Bright Annealed(BA)
04) Material: TP304, TP304L,TP304/304L, TP310/S, TP316,TP316L, TP316/316L, TP317L,TP321,TP347/H S31803, 904L
05) Standards: ASTM (ASME) SA/A213/M ASTM(ASME)269 ASTM(ASME)312 JIS G3459 JIS G3463 DIN 17456 DIN 17458
Schedule: 5/5S, 10/10S, 20/20S, 40/40S, 80/80S,120/120S, 160/160S,acc. to ANSI B36.19/36.10
06) Length: Max.17 meters (specific or random)
07) Delivery conditions: annealed, pickled & polished
08) Applications:
a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear)
b) Fluid, gas and oil transport
c) Pressure and heat transmission
d) Construction and ornament
e) Boiler heat exchangers
09) Packing: plastic bags for each piece then packed in seaworthy wooden cases
10) Min order quantity: 1 metric tons or upon negotiation
11) Delivery date: Min. 30 days and negotiation
Specifications :
| DN |
NPS(Inch) |
D(mm) |
SCH5S |
SCH10S |
SCH40S |
STD |
SCH40 |
SCH80 |
XS |
SCH80S |
SCH160 |
XXS |
| 6 |
1/8 |
10.30 |
- |
1.24 |
1.73 |
1.73 |
1.73 |
2.41 |
2.41 |
2.41 |
- |
- |
| 8 |
1/4 |
13.70 |
- |
1.65 |
2.24 |
2.24 |
2.24 |
3.02 |
3.02 |
3.02 |
- |
- |
| 10 |
3/8 |
17.10 |
- |
1.65 |
2.31 |
2.31 |
2.31 |
3.20 |
3.20 |
3.20 |
- |
- |
| 15 |
1/2 |
21.30 |
1.65 |
2.11 |
2.77 |
2.77 |
2.77 |
3.73 |
3.73 |
3.73 |
4.78 |
7.47 |
| 20 |
3/4 |
26.70 |
1.65 |
2.11 |
2.87 |
2.87 |
2.87 |
3.91 |
3.91 |
3.91 |
5.56 |
7.82 |
| 25 |
1 |
33.40 |
1.65 |
2.77 |
3.38 |
3.38 |
3.38 |
4.55 |
4.55 |
4.55 |
6.35 |
9.09 |
| 32 |
1 1/4 |
42.20 |
1.65 |
2.77 |
3.56 |
3.56 |
3.56 |
4.85 |
4.85 |
4.85 |
6.35 |
9.70 |
| 40 |
1 1/2 |
48.30 |
1.65 |
2.77 |
3.68 |
3.68 |
3.68 |
5.08 |
5.08 |
5.08 |
7.14 |
10.15 |
| 50 |
2 |
60.30 |
1.65 |
2.77 |
3.91 |
3.91 |
3.91 |
5.54 |
5.54 |
5.54 |
8.74 |
11.07 |
| 65 |
2 1/2 |
73.00 |
2.11 |
3.05 |
5.16 |
5.16 |
5.16 |
7.01 |
7.01 |
7.01 |
9.53 |
14.02 |
| 80 |
3 |
88.90 |
2.11 |
3.05 |
5.49 |
5.49 |
5.49 |
7.62 |
7.62 |
7.62 |
11.13 |
15.24 |
| 90 |
3 1/2 |
101.60 |
2.11 |
3.05 |
5.74 |
5.74 |
5.74 |
8.08 |
8.08 |
8.08 |
- |
- |
| 100 |
4 |
114.30 |
2.11 |
3.05 |
6.02 |
6.02 |
6.02 |
8.56 |
8.56 |
8.56 |
13.49 |
17.12 |
| 125 |
5 |
141.30 |
2.77 |
3.40 |
6.55 |
6.55 |
6.55 |
9.53 |
9.53 |
9.53 |
15.88 |
19.05 |
| 150 |
6 |
168.30 |
2.77 |
3.40 |
7.11 |
7.11 |
7.11 |
10.97 |
10.97 |
10.97 |
18.26 |
21.95 |
| 200 |
8 |
219.10 |
2.77 |
3.76 |
8.18 |
8.18 |
8.18 |
12.70 |
12.70 |
12.70 |
23.01 |
22.23 |
| 250 |
10 |
273.10 |
3.40 |
4.19 |
9.27 |
9.27 |
9.27 |
15.09 |
12.70 |
12.70 |
28.58 |
25.40 |
MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
