310S ASTM A269 Rura bez szwu ze stali nierdzewnej do wymiennika ciepła
Szczegóły Produktu:
|
|
Place of Origin: | CHINA |
---|---|
Nazwa handlowa: | MTSCO |
Orzecznictwo: | ISO 9001 & PED & AD2000 |
Model Number: | MTSCOSSST31 |
Zapłata:
|
|
Minimum Order Quantity: | negotiable |
Cena: | 4300-9800USD/TON |
Packaging Details: | Iron Case |
Delivery Time: | 30 Days |
Payment Terms: | T / T ; L / C |
Supply Ability: | 300 Tons / Month |
Szczegóły informacji |
|||
Material: | Stainless Steel 300 Series | Standard: | EN 10216-5 ; ASTM A213 / SA213 ; ASTM A269 / SA269 Etc |
---|---|---|---|
Surface: | Annealing | NDT: | Eddy Current Or Hydraulic Test |
Type: | Seamless | Delivery Condition: | Soft / Hard |
High Light: | Stainless Steel Seamless Tubing,ss Seamless Tubing |
opis produktu

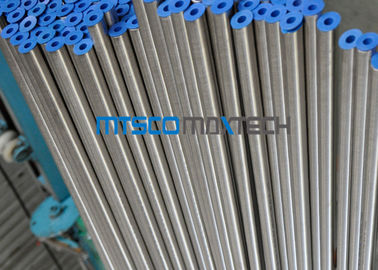

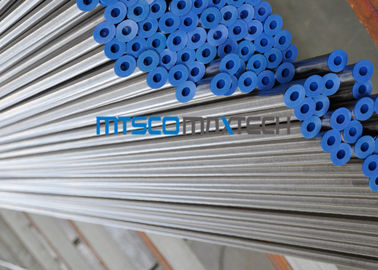

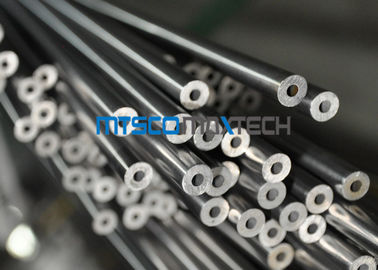

TP304L / 1.4306 Stainless Steel Seamless Tube With Bright Annealed Surface In Oil And Gas Industry
Item |
Description |
|
Basic Information |
Material Grade |
TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc |
Outer Diameter |
3.18-101.6mm |
|
Wall Thickness |
0.5-20mm |
|
Length |
Normally fixed length 6m , can as per customer’s requirement |
|
Standard |
ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect . |
|
Process Method |
Cold Drawn or Cold Rolled |
Application
a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Price Item: FOB , CFR , CIF or as negotiation
ASTM A213 / A213M Chemical Composition :
Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
(C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
(Mn) Manganese, max | 2 | 2 | 2 | 2 |
(P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
(S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
(Si) Silicon, max | 1 | 1 | 1 | 1 |
(Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
(Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
(Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
(Fe) Iron | Bal. | Bal. | Bal. | Bal. |
(Cu) Copper | N/A | N/A | N/A | N/A |
(N) Nitrogen | N/A | N/A | N/A | N/A |
Birmingham Wire Gauge BWG | |||||
Wall Thickness | Wall Thickness | ||||
BWG | IN | MM | BWG | IN | MM |
0 | 0.340 | 8.64 | 19 | 0.042 | 1.07 |
1 | 0.300 | 7.62 | 20 | 0.035 | 0.89 |
2 | 0.284 | 7.21 | 21 | 0.032 | 0.81 |
3 | 0.259 | 6.58 | 22 | 0.028 | 0.71 |
4 | 0.238 | 6.05 | 23 | 0.025 | 0.64 |
5 | 0.220 | 5.59 | 24 | 0.022 | 0.56 |
6 | 0.203 | 5.16 | 25 | 0.020 | 0.51 |
7 | 0.180 | 4.57 | 26 | 0.018 | 0.46 |
8 | 0.165 | 4.19 | 27 | 0.016 | 0.41 |
9 | 0.148 | 3.76 | 28 | 0.014 | 0.36 |
10 | 0.134 | 3.40 | 29 | 0.013 | 0.33 |
11 | 0.120 | 3.05 | 30 | 0.012 | 0.30 |
12 | 0.109 | 2.77 | 31 | 0.010 | 0.25 |
13 | 0.095 | 2.41 | 32 | 0.009 | 0.23 |
14 | 0.083 | 2.11 | 33 | 0.008 | 0.20 |
15 | 0.072 | 1.83 | 34 | 0.007 | 0.18 |
16 | 0.065 | 1.65 | 35 | 0.005 | 0.13 |
17 | 0.058 | 1.47 | 36 | 0.004 | 0.10 |
18 | 0.049 | 1.24 |
