310S ASTM A269 Rura bez szwu ze stali nierdzewnej do wymiennika ciepła
Szczegóły Produktu:
|
|
Place of Origin: | CHINA |
---|---|
Nazwa handlowa: | MTSCO |
Orzecznictwo: | ISO 9001 & PED & AD2000 |
Model Number: | MTSCOSSST43 |
Zapłata:
|
|
Minimum Order Quantity: | negotiable |
Cena: | 4300-9800USD/TON |
Packaging Details: | Iron Case |
Delivery Time: | 30 Days |
Payment Terms: | T / T ; L / C |
Supply Ability: | 300 Tons / Month |
Szczegóły informacji |
|||
Material: | Stainless Steel 300 Series , 316Ti , 317L , 347 , 321 | Standard: | EN 10216-5 ; ASTM A213 / SA213 ; ASTM A269 / SA269 Etc |
---|---|---|---|
Surface: | Annealing | NDT: | Eddy Current Or Hydraulic Test |
Type: | Seamless | Delivery Condition: | Soft / Hard |
High Light: | ss Seamless Tubing,ss seamless tube |
opis produktu

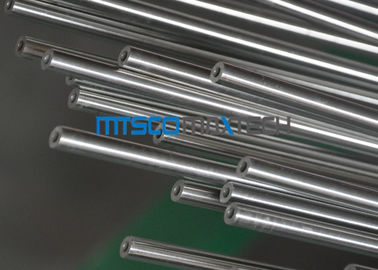

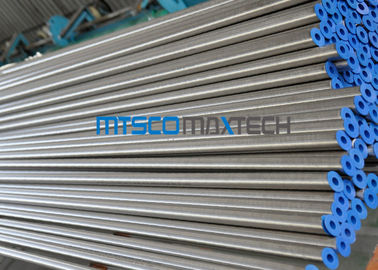

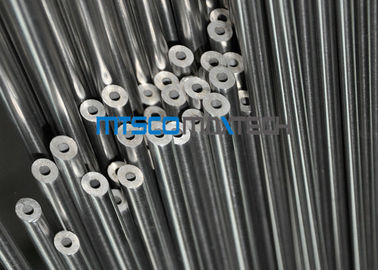

ASTM A213 / ASME SA213 Size 1 / 4 Inch Stainless Steel Seamless Tubing For Transportation
Material Grade: TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc
Outer Diameter 3.18-101.6mm
Wall Thickness 0.5-20mm
Length: Normally fixed length 6m , can as per customer’s requirement
Standard: ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .
Process Method: Cold Drawn or Cold Rolled
Application
a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Price Item: FOB , CFR , CIF or as negotiation
Payment: TT, LC or as negotiation
Delivery Time:30 working days after received your deposit ( Normally according to the order quantity )
Package: Iron case ; woven bag or as per customer’s requirement
Quality Requirement: Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
Test NTD ( Ultrasonic test , Eddy Current test )
Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )
Chemical Analysis ( Photoelectric Emission Spectroscopic )
Main Market: Europe , Middle East , Southeast Asia , South America etc
ASTM A213 / A213M Chemical Composition :
Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
(C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
(Mn) Manganese, max | 2 | 2 | 2 | 2 |
(P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
(S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
(Si) Silicon, max | 1 | 1 | 1 | 1 |
(Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
(Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
(Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
(Fe) Iron | Bal. | Bal. | Bal. | Bal. |
(Cu) Copper | N/A | N/A | N/A | N/A |
(N) Nitrogen | N/A | N/A | N/A | N/A |
Specifications :
DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
