TP304L S30403 Spawana rura z pojedynczym rdzeniem SS Coil Tube Przemysł chemiczny
Szczegóły Produktu:
|
|
Place of Origin: | CHINA |
---|---|
Nazwa handlowa: | MTSCO |
Orzecznictwo: | ISO 9001 & PED & AD2000 |
Model Number: | MTSCOSSCT49 |
Zapłata:
|
|
Minimum Order Quantity: | negotiable |
Cena: | 5500-10000USD/TON |
Packaging Details: | Iron Case |
Delivery Time: | 30 Days |
Payment Terms: | T / T ; L / C |
Supply Ability: | 300 Tons / Month |
Szczegóły informacji |
|||
Material: | 300 Series | Technology: | Cold rolled |
---|---|---|---|
Condition: | Soft / Hard | Test: | 100 % Hydraulic Test |
Length: | 100 m / coil | ||
High Light: | stainless steel coil pipe,seamless stainless steel pipe |
opis produktu

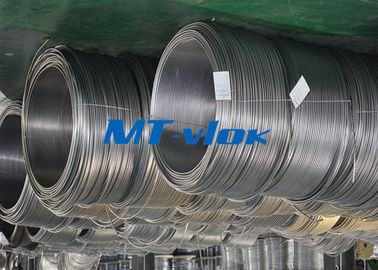

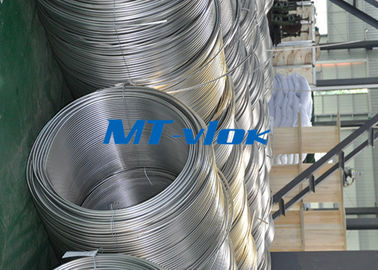

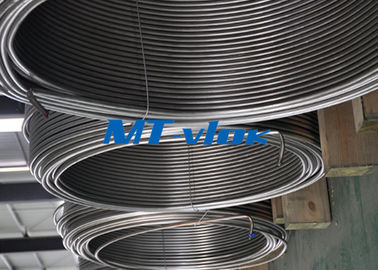

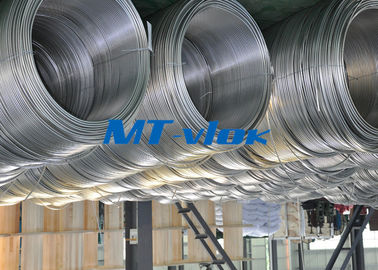

TP316 / 316L Stainless Steel Welded Super Long Coiled Tube For Petrochemical Industry
Where the coiled tubing used ?
1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line
C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
Application
a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Specifications :
DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
80 | 3 | 88.90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |
