Rura bez szwu ze stali nierdzewnej ASTM A312 TP304L Wyżarzane wytrawianie
Szczegóły Produktu:
|
|
Place of Origin: | CHINA |
---|---|
Nazwa handlowa: | MTSCO |
Orzecznictwo: | ISO 9001 & PED & AD2000 |
Model Number: | MTSCOSSSP40 |
Zapłata:
|
|
Minimum Order Quantity: | negotiable |
Cena: | 2900-10000USD/TON |
Packaging Details: | Plywood Case |
Delivery Time: | 30 Days |
Payment Terms: | T / T ; L / C |
Supply Ability: | 300 Tons / Month |
Szczegóły informacji |
|||
Material: | 300 Series , 316Ti , 317L , 347 , 321 | Delivery Condition: | Soft / Hard |
---|---|---|---|
NDT: | Eddy Current Or Hydraulic Test | End Cut: | Plain End ( PE ) / Bevel End ( BE ) |
Type: | Seamless | Inspection: | 100% |
High Light: | seamless stainless pipe,seamless stainless tube |
opis produktu

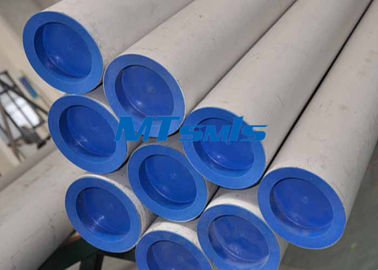

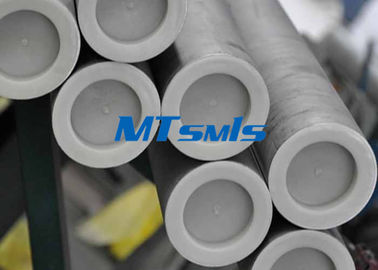

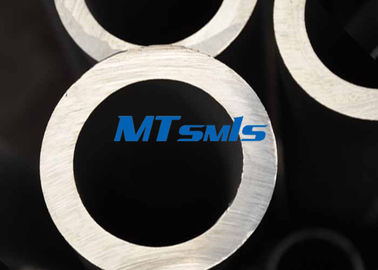

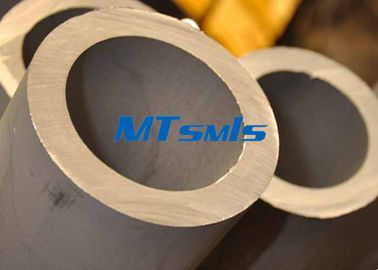

ASTM A312 / ASME SA312 TP347 / 347H Austenitic Stainless Steel Pipe In Fluid And Gas
Grade:TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H
Standard:ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc
Size: OD:10.3-1219mm
WT:1.24-59.54mm
Length:Max.12M
Advantage: Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment
Application: Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature
resistant,low temperature resistant,corrosion resistant.The size can be made according
to the customers requirements.High pressure boiler pipe applies to container,petrochemical
and so on.
Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and
working temperature between 450 to 650.
Package: Plastic in both ends, then packed in iron case
Chemical Composition
C(max) | Si(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
TP304/1.4301 | 0.080 | 1.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
TP304L/1.4307 | 0.035 | 1.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
TP304H/1.4948 | 0.04-0.10 | 1.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
TP316/1.4401 | 0.080 | 1.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
TP316L/1.4404 | 0.035 | 1.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
TP316Ti/1.4571 | 0.080 | 1.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
TP321/1.4541 | 0.080 | 1.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
TP317L/1.4449 | 0.080 | 1.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
TP347H/1.4912 | 0.04-0.10 | 1.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
TP309S/1.4833 | 0.080 | 1.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
TP310S/1.4845 | 0.080 | 1.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
Industry & Advantage |
Application |
a) For fluid & gas transport |
b) Structure & machining etc |
||
Advantages |
a) Advanced technology of cold draw machine |
|
b) Advanced annealing machine |
||
c) Better mechanical property |
||
d) More precise dimension |
||
e) Perfect inspection method and inspection equipment etc |
