Small Diameter Straight Stainless Steel Heat Exchanger Tubes Welded TP316 / 316L

Szczegóły Produktu:
Place of Origin: CHINA
Nazwa handlowa: MTSCO
Orzecznictwo: ISO 9001 & PED & AD2000
Model Number: MTSCOHET43
Zapłata:
Minimum Order Quantity: negotiable
Cena: 3700-9000USD/TON
Packaging Details: Plywood Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month

Szczegóły informacji

Material: 300 Series Surface: Pickling
U bent part surface: Annealing , Not Pickling Length: 18 m
Standard: ASTM A213 Inspection: 100%
High Light:

heat transfer tube

,

heat exchanger tubing

opis produktu



TP316 / 316L Small Diameter Stainless Steel Straight Heat Exchanger Welded Tube

   Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .

Chemical Composition

  C(max) Si(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75




Application

a) For fluid & gas transport
b) Structure & machining etc
Advantages
a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment etc

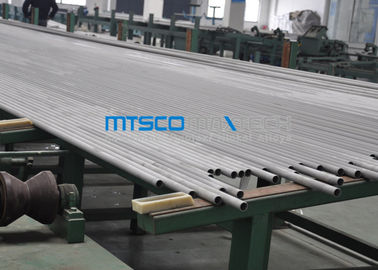

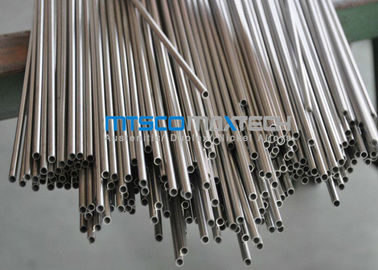

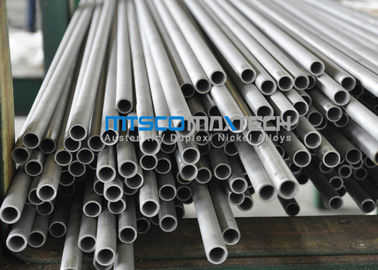

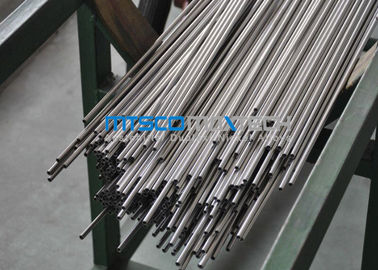

Small Diameter Straight Stainless Steel Heat Exchanger Tubes Welded TP316 / 316L 0


Process :

1 . We use Cold Drawn techonology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage



Item Description
Basic Information Material Grade TP304, TP304L, TP304H, TP316, TP316L, TP316Ti, TP309S, TP310S, TP321, TP321H, TP347, TP347H, etc
Outer Diameter 5.80mm-2032mm (0.23" to 80")
Wall Thickness 0.25mm-28mm (0.01" to 1.125")
Length Normally fixed length 6m, can as per customer’s requirement
Standard ASTM A312; ASTM A269; ASTM A789; ASTM A790 ect.
Process Method ERW, EFW etc
Industry & Advantage Application a) For fluid and gas transport
b) Structure and machining
c) Heat exchanger pipes etc
Advantages a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Terms & Conditions Price Item FOB, CFR, CIF or as negotiation
Payment T/T, LC or as negotiation
Delivery Time 30 working days after received your deposit (Normally according to the order quantity)
Package Iron case; woven bag or as per customer’s requirement
Quality Requirement Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Quality Test X-ray, Size test, Length test
Chemical Analysis(Photoelectric Emission Spectroscopic) etc
Market Main Market Europe, Middle East, Southeast Asia, South America. Etc
