ASTM A249 / ASME SA249 Rura wymiennika ciepła

Minimum Order Quantity :	negotiable	Cena :	3700-9000USD/TON

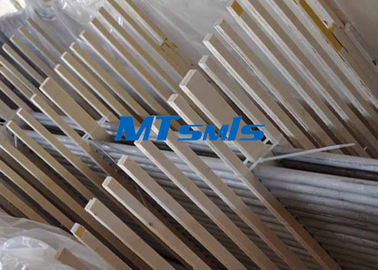

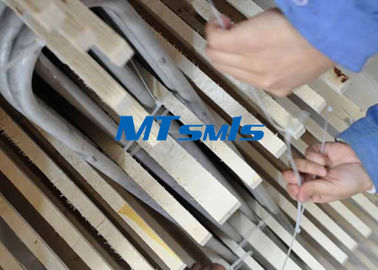

Packaging Details :	Plywood Case	Delivery Time :	30 Days
Payment Terms :	T / T ; L / C	Supply Ability :	300 Tons / Month

Place of Origin:	CHINA	Nazwa handlowa:	MTSCO
Orzecznictwo:	ISO 9001 & PED & AD2000	Model Number:	MTSCOHET42

Szczegóły informacji
Materiał:	300 Series	Powierzchnia:	Marynowanie
Wygięta powierzchnia części:	Wyżarzanie, a nie marynowanie	Długość:	18 m
Standard:	ASTM A213	Kontrola:	100%
Podkreślić:	heat exchanger tubing , heat exchanger pipe

opis produktu

ASTM A249 / ASME SA249 ERW Stainless Steel Heat Exchanger Welded Tube

Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .

ASTM A249 Standard :

Size OD	Nominal Wall	Outside Diameter	Length	Wall
1/2" (12.7)	0.065" (1.65)/0.049" (1.25)	+/-0.005 (0.13)	+1/8" (3.18) - 0	+/-10.0%
3/4" (19.1)	0.065" (1.65)/0.049" (1.25)	+/-0.005 (0.13)	+1/8" (3.18) - 0	+/-10.0%
1" (25.4)	0.065" (1.65)/0.049" (1.25)	+/-0.005 (0.13)	+1/8" (3.18) - 0	+/-10.0%
1-1/2" (38.1)	0.065" (1.65)/0.049" (1.25)	+/-0.008" (0.20)	+1/8" (3.18) - 0	+/-10.0%
2" (50.8)	0.065" (1.65)/0.049" (1.25)	+/-0.008" (0.20)	+1/8" (3.18) - 0	+/-10.0%
2-1/2" (63.5)	0.065" (1.65)	+/-0.010" (0.25)	+1/8" (3.18) - 0	+/-10.0%
3" (76.2)	0.065" (1.65)	+/-0.010" (0.25)	+1/8" (3.18) - 0	+/-10.0%
4" (101.6)	0.083" (2.11)	+/-0.015" (0.38)	+1/8" (3.18) - 0	+/-10.0%
6" (152.4)	0.083" (2.11)	+/-0.030" (0.76)	+1" (25.4) - 0	+/-10.0%
6" (152.4)	0.109" (2.77)	+/-0.030" (0.76)	+1" (25.4) - 0	+/-10.0%
8" (203.2)	0.109" (2.77)	+0.061" (1.55)/-0.031" (0.79)	+1" (25.4) - 0	+/-10.0%

Application
a) For fluid & gas transport
b) Structure & machining etc
Advantages
a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment etc

Material Grade :

American Standard	TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L , S31803 Etc
European Standard	1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 , 1.4462 Etc
German Standard	X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc

ASTM A249 / ASME SA249 Rura wymiennika ciepła 0

Process :

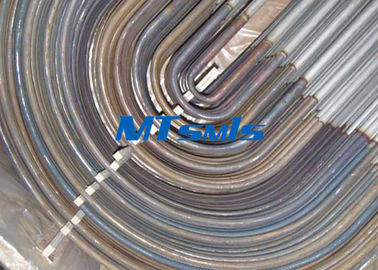

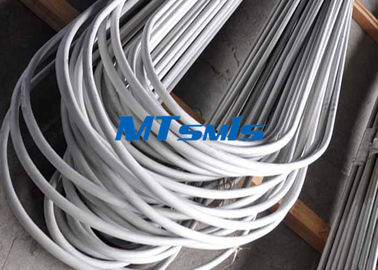

1 . We use Cold Drawn techonology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage

Specification :

Size	OD : 4.76 - 25.4mm
	WT : 0.71 - 2.11mm
	Length : >1000Meters
	4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm
	6 * 1mm / 6 * 1.5mm
	6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm
	7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm
	9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm
	10 * 1mm / 10 * 1.5mm
	12 * 1mm / 12 * 1.5mm / 12 * 2mm
	12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm
	14 * 1mm / 14 * 1.5mm / 14 * 2mm
	15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm
	16 * 1mm / 16 * 1.5mm / 16 * 2mm
	19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm
	25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm
